Understanding Variable Speed Pump Minimum Flow Requirements: A First Principles Analysis.

May 2025

By Christopher Hughes, P.E.

Introduction

Variable speed pumps have revolutionized hydronic heating and cooling systems, offering dramatic energy savings and improved system control. However, industry guidelines often specify minimum speed requirements—typically 20-30% of full speed—that may unnecessarily limit operational flexibility and energy-saving potential. This article examines these limitations through the lens of fundamental engineering principles, challenging common assumptions while providing practical guidance for system designers and operators.

Are conventional minimum speed requirements based on actual physical limitations, or do they represent overly conservative guidelines that sacrifice efficiency? By analyzing the underlying physics of motor cooling, power consumption, and system dynamics, we can separate myth from reality and identify opportunities for improved system performance.

Why Minimum Speed Matters: The High Stakes of Lower Operation

Why should building owners, engineers, and facility managers care about the difference between a 30% minimum speed and a 10% minimum speed? The implications extend far beyond academic interest, directly impacting:

Substantial Energy Savings

The cube law relationship between pump speed and power consumption means that even small reductions in minimum speed yield dramatic energy savings:

• A 100 HP pump operating at 30% speed consumes approximately 2.7 HP (0.3³ × 100)

• The same pump at 10% speed consumes only 0.1 HP (0.1³ × 100)

This 96% reduction in power consumption during low-load periods translates to thousands of dollars in annual savings per pump. For facilities with dozens or hundreds of pumps, the cumulative impact can reach hundreds of thousands of dollars annually.

Enhanced System Control

Lower minimum speeds enable more precise matching of system output to actual demand, particularly important in:

• Healthcare facilities: Where precise temperature and humidity control directly impacts patient outcomes

• Data centers: Where tight environmental control affects equipment reliability and cooling costs

• Laboratory environments: Where stable conditions are essential for research integrity

• Multi-zone buildings: Where diverse heating and cooling needs require granular control

Extended Equipment Life

Contrary to common assumptions, operating at lower speeds can extend the lifespan of both pumps and system components by:

• Reducing mechanical wear from frequent cycling

• Eliminating water hammer and pressure spikes

• Decreasing thermal stress on heat exchangers and piping

• Minimizing bearing loads and vibration

Improved Occupant Comfort

When pumps can modulate to lower speeds:

• Noise from hydronic systems decreases significantly

• Temperature swings between cycles are reduced

• Zones receive more consistent heating or cooling

• Response to changing conditions becomes more immediate

Regulatory Compliance and Sustainability Goals

As building energy codes and corporate sustainability commitments become increasingly stringent, extracting every possible efficiency becomes essential:

• Contributes to LEED, WELL, and other certification targets

• Supports net-zero energy objectives

• Helps meet municipal energy benchmarking requirements

• Reduces a facility's carbon footprint

The ability to safely operate at lower speeds than traditionally recommended represents one of the last untapped efficiency opportunities in hydronic systems—an opportunity that could be worth millions in energy savings across the building sector while simultaneously improving performance and reliability.

Part 1: Industry Standards and Specifications

Manufacturer Guidelines

Major motor manufacturers like Baldor/ABB provide specific turndown ratios in their documentation. For example, Baldor's LP100 and HP100 vertical pump motors specify "Inverter duty per NEMA MG1 Part 31 (VT 20:1, CT 4:1)" in their technical documentation. This notation indicates that for variable torque applications like pumps and fans, operation down to 5% of full speed (a 20:1 turndown ratio) is acceptable, while constant torque applications should remain above 25% (a 4:1 ratio).

Similar specifications appear across the industry. The ABB GP100 general purpose motors likewise support "variable torque (VT) up to 20:1 and constant torque (CT) up to 4:1 applications." These published specifications represent the manufacturer's assessment of safe operating parameters based on extensive testing and field experience.

Understanding "Inverter Duty" Motors and Their Capabilities

When specifying variable speed pump motors, "Inverter Duty" is a commonly required designation in project documents. However, this term has significant implications for minimum speed capabilities that are often misunderstood or overlooked in practice.

What "Inverter Duty" Actually Means

The term "Inverter Duty" is not precisely defined in industry standards, which has led to some confusion and inconsistent usage. Over the years, the term "inverter duty" has "become watered down" in the motor industry, making it important to understand what it actually signifies:

1. NEMA MG1 Part 31 Compliance: At minimum, an inverter duty motor must comply with NEMA MG1 Part 31, which primarily addresses insulation requirements to handle the voltage spikes inherent in VFD operation.

2. Enhanced Thermal Management: True inverter duty motors include additional design features beyond basic insulation requirements, such as:

   • Superior cooling systems, often with separately powered cooling fans

   • Enhanced winding insulation systems

   • Specialized bearing protection

   • Improved grounding systems

3. Turndown Ratio Capability: Most significantly for our discussion, genuine inverter duty motors typically offer far greater turndown capabilities than standard motors:

   • True "Inverter Duty" motors are "designed to run on variable frequency drive (VFD) power" with "1000:1 or 2000:1 CT or VT turn down"

   • This is dramatically different from the standard 20:1 VT / 4:1 CT ratios of regular "inverter rated" motors

Inverter Duty vs. Inverter Rated: Distinctions

Many motor specifications use similar-sounding terms with vastly different capabilities:

Unfortunately, "the term 'Inverter Duty' has no official definition enforceable by anyone, so companies have over used it and rendered it virtually meaningless". The only reliable indicator is explicit documentation of turndown ratio capabilities.

Implications for Minimum Speed Settings

This distinction has profound implications for the minimum speed discussion:

1. Extreme Low-Speed Capability: A true inverter duty motor with 1000:1 turndown ratio can theoretically operate down to 0.1% of base speed (1.8 RPM for a 1800 RPM motor), far below the conventional 20-30% minimum.

2. Wasted Potential: When system designers limit inverter duty motors to 20-30% minimum speeds, they're essentially throwing away 99% of the motor's operating range.

3. Common Misspecification: Many projects specify "inverter duty" motors (with their premium cost) but then operate them at conservative minimum speeds that don't require this premium designation.

For systems with genuine inverter duty motors, minimum speed settings should be based solely on system requirements (valve authority, heating/cooling needs, etc.), as the motors themselves can operate reliably at speeds well below any practical system minimum.

The Disconnect Between Industry Standards and Common Practice

A striking disconnect exists between motor manufacturer specifications and typical HVACR industry practice when it comes to minimum pump speeds:

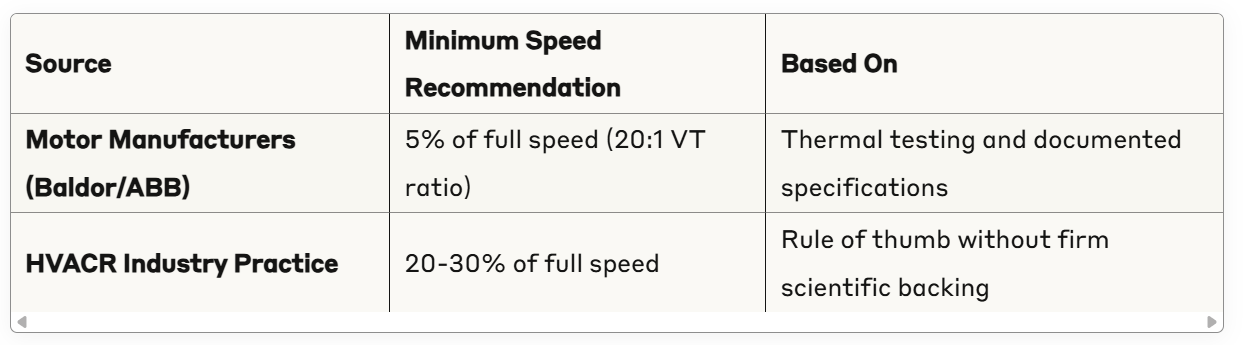

Motor Industry Documentation vs. HVACR Practice

This 4-6× difference represents significant missed energy savings potential. While motor manufacturers have conducted extensive testing and clearly document that their equipment can safely operate as low as 5% of full speed for variable torque applications, HVACR designers routinely default to much higher minimum speeds without technical justification.

Why the Disconnect Persists

Several factors contribute to this divergence:

1. Industry Inertia: The 20-30% rule of thumb has been passed down through generations of engineers without examination.

2. Risk Aversion: Many designers prefer "safe" minimums, even when they unnecessarily sacrifice efficiency.

3. Knowledge Gap: Many HVACR professionals are unaware of motor nameplate data like the VT 20:1 rating or don't understand its implications.

4. Split Responsibility: Motor selection and pump speed control are often handled by different disciplines (electrical vs. mechanical), leading to communication gaps.

5. Focus on Peak Conditions: System designers traditionally optimize for design day conditions rather than part-load operation, despite the fact that systems operate at part-load for the vast majority of their run time.

The result is that HVACR designs routinely leave significant energy savings on the table by limiting equipment to arbitrary minimum speeds that are 4-6 times higher than what the motor manufacturers themselves specify as safe.

Origins of Minimum Speed Requirements

The VT 20:1 and CT 4:1 turndown ratios that appear in motor specifications have specific origins related to thermal management rather than the NEMA MG1 Part 31 insulation standards:

Thermal Management Basis

Turndown ratios originated from motor manufacturers' thermal testing to determine safe operating limits at reduced speeds. The ability of a motor to be operated at speeds lower than the rated base speed is represented by the "turndown ratio" - the ratio of speed relative to the rated base speed that it can be operated at safely without suffering thermal damage.

This testing focuses on:

1. Self-Cooling Capacity: TEFC (Totally Enclosed Fan-Cooled) motors rely on shaft-mounted cooling fans that slow proportionally with motor speed. Manufacturers determined through testing that standard motors could maintain acceptable winding temperatures down to certain speed thresholds.

2. Load Type Considerations: A motor will carry a CT and VT rating (such as 20:1 or 10:1) which designates the ratio you can turndown from the nominal speed without overheating the motor. Different ratings are applied based on how load characteristics affect heating:

   • VT (Variable Torque): For loads like fans and pumps where torque decreases with the square of speed

   • CT (Constant Torque): For loads like conveyors where torque remains constant regardless of speed

3. Empirical Testing: These ratios were not derived from theoretical calculations but from actual motor testing under various load conditions and speeds.

Industry Evolution of Standards

The 20:1 VT and 4:1 CT ratios became industry standards through a combination of:

1. Manufacturer Testing: Major manufacturers like Baldor/ABB conducted extensive thermal testing across their motor lines to establish safe operating envelopes.

2. Conservative Engineering: Early turndown ratios included significant safety margins to account for varying installation conditions and imperfect ventilation.

3. Field Experience: As variable speed drives became more common in the 1980s and 1990s, field data validated these ratings and they became standardized across the industry.

4. Market Segmentation: Terms like "Inverter Duty" (typically associated with 1000:1 turndown), "Inverter Rated" and "Inverter Ready" (associated with 10:1 or 20:1 turndown) evolved to differentiate motor capabilities.

It's important to note that these turndown ratios are distinct from the NEMA MG1 Part 31 standards, which focus on insulation properties rather than thermal performance. A motor can meet the Part 31 voltage spike requirements without necessarily being rated for extended low-speed operation.

Part 2: The Physics of Variable Speed Pump Operation

Fundamental Relationships

To understand the true limitations of variable speed pumps, we must examine the physics governing their operation. Three fundamental relationships are particularly relevant:

1. Power consumption follows the cube law: Power ∝ Speed³

   • At 50% speed, power drops to 12.5% (0.5³) of full-speed power

   • At 25% speed, power drops to 1.56% (0.25³) of full-speed power

   • At 10% speed, power drops to 0.1% (0.1³) of full-speed power

2. Heat generation is proportional to power: Heat ∝ Power

   • I²R losses in motor windings decrease with the square of current

   • Mechanical friction and windage losses decrease with speed

   • For variable torque loads like pumps, load-related heating decreases with the cube of speed

3. Cooling capacity follows the square law: Cooling ∝ Speed²

   • At 50% speed, cooling capacity drops to 25% (0.5²) of full capacity

   • At 25% speed, cooling capacity drops to 6.25% (0.25²) of full capacity

   • At 10% speed, cooling capacity drops to 1% (0.1²) of full capacity

The Heat Balance Equation: Visual Proof

The mathematical relationships described above can be clearly visualized in the graphs below, which illustrate the core insight of our analysis:

The top graph provides a direct comparison between:

• Red line: Heat generation, which follows the cube law (∝ Speed³)

• Blue line: Cooling capacity, which follows the square law (∝ Speed²)

Several insights emerge from this visualization:

1. At 100% speed, both heat generation and cooling capacity are at their maximum values, representing the design balance point.

2. As speed decreases, both curves decline, but heat generation (red line) decreases much more rapidly than cooling capacity (blue line).

3. Below approximately 50% speed, there is a widening gap between the curves, with cooling capacity significantly exceeding heat generation.

4. At very low speeds (10-20%), heat generation has nearly flattened at close to zero, while cooling capacity remains proportionately higher.

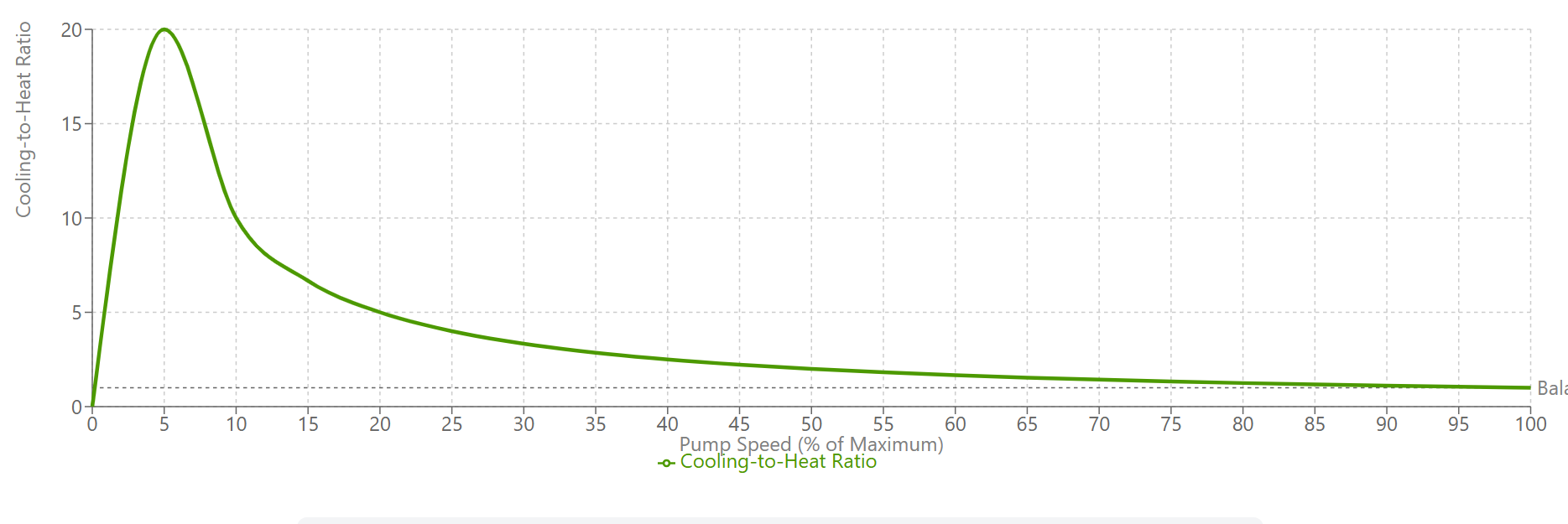

The bottom graph quantifies the relationship between cooling capacity and heat generation as a ratio across the speed range:

1. At 100% speed, the ratio is 1:1 (balanced design point).

2. As speed decreases, the ratio increases dramatically, peaking at approximately 20:1 at very low speeds.

3. The peak in the ratio occurs around 5% of maximum speed, indicating that from a purely thermal perspective, this represents the most favorable operating condition.

4. Even at 20% speed—below the conventional minimum—the cooling-to-heat ratio is approximately 5:1, providing a substantial margin of safety.

These visualizations provide compelling evidence that contrary to conventional wisdom, lower speeds create more favorable thermal conditions for motors, not less favorable ones. The cooling capacity relative to heat generation improves as speed decreases, reaching its optimal point at very low speeds.

This mathematical reality directly contradicts the common assumption that minimum speed requirements are necessary to prevent motor overheating. From a purely thermal perspective, a variable speed pump could theoretically operate at speeds well below 10% without thermal concerns.

Practical Implications

The heat balance analysis illustrated in these graphs has profound implications for industry practice:

1. Manufacturer-specified minimum speeds (typically allowing operation down to 5% for variable torque applications) are not only adequate but likely include substantial safety margins from a thermal perspective.

2. The conventional 20-30% minimum speed guideline often applied in the field is unnecessarily conservative when based solely on motor cooling concerns.

3. System designers can confidently focus on actual system requirements (control valve authority, equipment minimum flows, etc.) rather than arbitrary motor protection limits when establishing minimum speed settings.

Part 3: Legitimate System-Based Minimum Flow Requirements

While thermal analysis demonstrates that motor protection concerns should not limit minimum pump speeds, several legitimate system-based factors do warrant careful consideration when establishing minimum flow rates:

Hydronic System Requirements

1. Control Valve Authority: Control valves require adequate pressure differential across them to maintain proper control authority. When pumps operate at extremely low speeds, pressure differentials may become insufficient for valves to modulate effectively, leading to poor temperature control. This is a system design consideration, not a pump protection issue.

2. Equipment Minimum Flows: Boilers, chillers, and heat exchangers often have manufacturer-specified minimum flow requirements to:

   • Prevent thermal shock or localized overheating in boilers

   • Avoid freezing in chiller evaporators

   • Maintain turbulent flow for effective heat transfer

   • Prevent temperature stratification

3. Flow Regime Considerations: The transition from turbulent to laminar flow occurs at lower velocities, which can significantly impact system performance:

   • Heat transfer efficiency decreases dramatically in laminar flow regimes

   • System pressure drop characteristics change

   • Distribution patterns within the system may become unpredictable

4. Distribution Effectiveness: In large buildings, very low flows might not reach distant parts of the system, particularly in higher floors or areas with complex piping, resulting in comfort complaints or process problems.

Mechanical Considerations

1. Pump-Specific Flow Requirements: Some pumps have minimum flow requirements based on their specific design to prevent:

   • Recirculation within the impeller

   • Excessive radial thrust on bearings

   • Cavitation at the pump inlet

2. Resonant Frequencies: Pump assemblies have natural frequencies that can cause damaging vibration when operation matches these frequencies. Very low speeds might intersect with these resonant points, requiring careful commissioning to identify and avoid them.

Control System Limitations

1. Control Resolution: At extremely low speeds, small absolute changes in frequency represent large percentage changes in flow, potentially affecting control precision and stability.

2. Sensor Accuracy: Flow meters and differential pressure sensors often have limited accuracy at very low flows, creating challenges for precise control.

Distinction

The key insight: These legitimate system requirements should determine minimum flows—not arbitrary motor protection guidelines. The minimum pump speed should be set based on the highest of these system requirements, not based on unfounded concerns about motor cooling or generic rules of thumb.

When engineers understand that motor thermal protection is not a limiting factor at low speeds, they can focus on addressing the genuine system limitations through proper design and control strategies, potentially achieving lower minimum flows than traditionally accepted.

Part 4: Bridging Theory and Practice

Case Studies

Field experience supports the theoretical analysis. In a documented installation of 100 HP pump motors in a university campus heating system, pumps were successfully operated at speeds as low as 15% of maximum without adverse thermal effects. Temperature monitoring showed motor winding temperatures well below rated limits even after extended operation at these low speeds.

Similarly, a hospital cooling system retrofitted with variable speed drives achieved reliable operation at 12% of full speed, with energy monitoring confirming power consumption of less than 0.5% of full-load power. These examples demonstrate that the theoretical advantages of low-speed operation can be realized in practical applications.

Design Recommendations

Based on both theoretical analysis and field experience, the following recommendations can guide system design and operation:

1. Motor Selection: Specify inverter-duty motors that meet NEMA MG1 Part 31 requirements. While these motors are typically rated for 5:1 to 20:1 turndown ratios, they can often operate at even lower speeds when properly applied.

2. VFD Configuration: Modern drives should be programmed to prevent operation at speeds that could create resonance problems specific to the installation.

3. Monitoring: Where operation will regularly extend below 20% speed, consider temperature monitoring to validate performance and provide protection.

4. System Design: Focus on hydraulic stability and heat transfer requirements rather than motor cooling when establishing minimum flow rates.

5. Application-Specific Approach: Rather than applying universal minimum speed guidelines, evaluate each application based on its specific characteristics.

Part 5: Economic Analysis

Energy Savings Calculations

The energy savings potential of low-speed operation is substantial. For a 100 HP pump motor operating 8,760 hours annually:

• At 30% speed (conventional minimum): Power = 2.7% of full load = 2.7 HP = 2 kW × 8,760 hours = 17,520 kWh

• At 15% speed (lower minimum): Power = 0.34% of full load = 0.34 HP = 0.25 kW × 8,760 hours = 2,190 kWh

The difference represents an 87.5% reduction in energy consumption during low-load periods. At $0.12/kWh, this equates to annual savings of $1,840 per pump.

Lifecycle Cost Considerations

Concerns about equipment longevity at lower speeds appear largely unfounded. Modern inverter-duty motors with properly sized VFDs typically demonstrate excellent reliability across their operating range. In fact, the reduced mechanical stress and lower operating temperatures associated with slower speeds can potentially extend equipment life rather than shorten it.

Maintenance costs may slightly increase due to the need for more sophisticated monitoring and control systems, but these costs are typically offset by energy savings and reduced mechanical wear.

Conclusion

The physics of variable speed pump operation clearly demonstrates that motor cooling concerns do not justify the conservative minimum speed guidelines commonly applied in the industry. Heat generation decreases more rapidly than cooling capacity as speed decreases, creating more favorable thermal conditions at lower speeds.

While manufacturer specifications typically indicate minimum speeds of 5-10% for variable torque applications, practical limitations are more likely to arise from system requirements, hydraulic stability, or control precision than from motor cooling concerns.

By understanding these principles, system designers and operators can confidently implement control strategies that take full advantage of the energy-saving potential of variable speed pumps while maintaining reliable operation.

Rather than applying arbitrary minimum speed percentages, a first-principles approach—considering the specific characteristics of each application—provides the optimal balance of energy efficiency and operational reliability.

Appendix: Decision Framework for Determining Minimum Pump Speeds

When establishing minimum speed settings for variable speed pumps, consider the following factors in sequence:

1. System Requirements

   • Heat exchanger minimum flow requirements

   • Boiler/chiller manufacturer specifications

   • Distribution system requirements for reaching all zones

2. Pump Hydraulic Stability

   • Manufacturer's published minimum flow rate

   • Flow required to prevent cavitation or flow separation

   • Any specific application curves provided by the manufacturer

3. Motor and Drive Capabilities

   • Manufacturer's published turndown ratio (typically 20:1 for VT applications)

   • VFD resolution and control capabilities at low frequencies

   • Any resonant frequencies to be avoided

4. Energy Optimization

   • Balance between pump energy consumption and overall system efficiency

   • Consider impact on other system components (boilers, chillers, etc.)

   • Evaluate the diminishing returns of extremely low speeds

By analyzing these factors in a systematic manner, system designers can establish minimum speed settings that optimize energy efficiency while ensuring reliable, stable operation.
